ERW steel pipe

Home > ERW steel pipe,ERW pipe,ERW

ERW steel pipe(Electric resistance welding steel pipe):
Size:355*6-30 mm
Material:GR.A,GR.B,L245,X42,X46,X52,X56...
API/ ISO Certificatification

Type: Carbon ERW steel pipe
Size: 355*6-30 mm
Wall thickness 6-30 mm
Standard ASTM A53, API 5L, DIN1626,JISG3452,JSSG3457
Material GR.A GA.B X42 X46 X52 X56 X60 X70 J-55 N-80
Packing Hexagonal shape bundles wrapped with strong steel strip and plastic cap, Besides that, we can also accord to customer requirement.
Application Petroleum ,power, gas, chemical and medical equipment, foodstuff, papermaking ,aviation, smelting, boiler heat ,shipbuilding, metallurgy …
Min order quality 20tons
Deliver time According customers requirement
Quality First grade
productivity 1500T/M
Others
  1. Special design available according to requirement
  2. All the production process is made under the ISO9001:2000strictly.

.

ERW steel pipe Features and Benefits :

ERW steel pipe Standards: API 5L PSL1/PSL2, ISO 3183-1/3183-2. Anti-H2S corrosion, Anti-CO2 corrosion
Grade: GR B, X42-X80
Specification: 219.1 - 610 mm*4 - 19.1mm(8 5/8"-24"*0.157"-0.750")
Wall thickness X65-X70: 15.9mm Max; X80: 12.7mm Max
Line pipe can be used for convoying gas, water and oil in both the oil and natural gas industries.

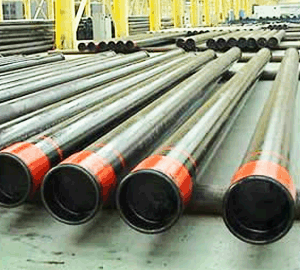

ERW API Casing(ERW steel pipe)
Standards: API 5CT
Grade:J55,K55, L80, N80,P110
Specification:219.08-508mm*7.72-16.66mm(8 5/8"-20"*0.304"-0.656")
End type: P,PS,PSLB,PSB,PLB,
Uses: casing serves as wall of a well

ERW Structural Pipe(ERW steel pipe)
Standards: ASTM A53M, JIS G3466
Grade: GR.A,GR.B, STKR400,STKR490
Specification: 219.1-630mm*4-20mm(8 5/8"-24 4/5"*0.157"-0.787")
Uses: structural pipe is suitable for mechanical and pressure applications and low pressure liquid delivery and other purposes..

ERW steel pipe
