API 5L A106 GR.B ERW Pipe


API 5L ERW Pipes

ERW Pipe
Electrical Resistance Welded (ERW) steel pipe is chilly fashioned from the ribbon of metal pulled through a series of rollers and shaped into tubes which have been fused having an electric powered charge.

Floor finishes can be found in bare and coated formats and therefore are presented within a variety diameters of lengths to more than one hundred ft.

Typical
API 5L, ASME, JIS, DIN,ASTM B36, ect.
Out Diameter : 6mm~2400mm ,1/8"~100",DN10~DN1200
WT:SCH5~SCH160, STD, XS, XXS, 1mm~120mm
Materials
ASTM A106 GRB/ A53 GRB/ API 5L X70GRB/
API 5 CT/ ST42/ST37/ ST52. Q215/Q235/A179.
Size,12000mm

erw pipe,hfw pipe,api 5l erw pipe
ERW pipe:- Electrical Resistance welded tube,flat skelp
is usually to be converted steadily in to round variety and weld
as a result of high frequency welder ,weld seam is seem during the
sort of offset ,that is taken out thro o.d. sgarfing instrument.


ERW steel pipes are available in various diameters, wall thickness, complete and grades

Major purposes
Drinking water pipelines
Agriculture & irrigation (Water mains, industrial h2o pipe lines, plant piping, deep tube-wells & casing pipes, sewerage piping)
Gas pipe lines
LPG and other non-toxic gas lines
ERW Pipes Manufacturers in China

Our manufacturing process generally involves the following stages inside of a step by step procedure.

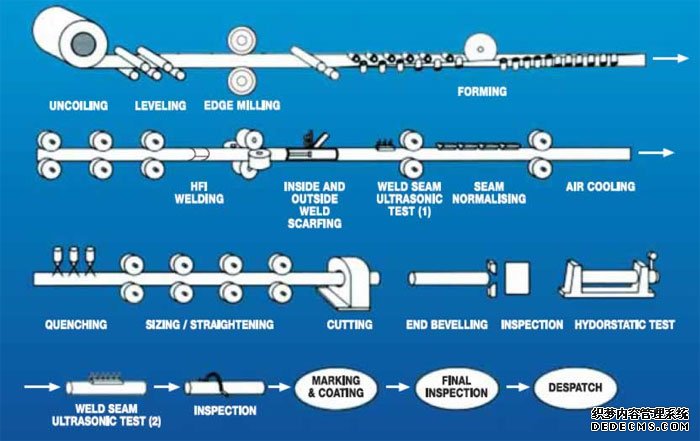

Typical ERW Pipe Manufacturing Process
Typical ERW Pipe Manufacturing Process
