Carbon steel pipe

Home >

Carbon steel pipe
1.ASTM A106/A53 GR.B Carbon steel pipe
2.Outer diameter:1/2"-24"
3.Wall thickness:SCH5S-XXS
4.API,ISO

10#,20#,45#,16Mn, ASTM A106 Gr.B, ASTM A53 Gr.B, St 37, St 42, St 52, Q 235, Q 195, Q345, 27SiMn

Production
Specification	6mm-1220mm (1/2''-24'')× 1mm-70mm
Standard	GB, ASTM, API 5L, API 5CT,DIN, JIS and so on
Out Diameter	6mm-1220mm (1/2''-24'')× 1mm-70mm
Wall Thickness	1mm-70mm
Grade	10#,20#,45#,16Mn,27SiMn,12Cr1MoV,Q235, ST42,ST52,A106-a,A106-b, and so on
Length	6-12m. As customers requestments.
Plade of Origin	Cangzhou, China
Model Number	6mm-1220mm (1/2''-24'')× 1mm-70mm
Technique	Seamless
Usage	1. Low and middle pressure fluid transportation pipeline 2. Casing Tube 3. Boiler Pipe 4. Petroleunm and natural gas industry 5. Chemistry industry 6. Electric industry
Package	1. Bundle packing. 2. Bevelled end or plain end or warnished as per buyer's requestments. 3. Marking: as per customer's requests. 4. Painting varnish coating on the pipe. 5. Plastic caps at ends.
Delivery Time	15-20 days or as clients reqestments.
Supply	1. seamless steel pipe 2. ERW steel pipe 3. steel casing 4. tubing 5. hot-rolled steel pipe 6. spiral steel pipe 7. hot-galvanized steel pipe

2 (20).jpg

Specifications	China Standard	Steel Grade	Standard
Carbon steel pipe and pipes for structural purpose	GB/T8162-1999	10, 20, 35, 45, 40Mn2, 45Mn2, 27SiMn, 20Cr, 40Cr, 20CrMo, 35CrMo, 38CrMoA1, 50CrV, 30CrMnSi	ASTM A500-98 ASTM A501-98 ASTN A519-98 JIS G3441-1994 JIS G3444-1994
Seamless steel tubes and pipes for liquid service	GB/T8163-1999	10, 20, Q295, Q345	ASTM A53-98 ASTM A192 ASME S192 JIS G3452-1998 FIS G3454-1998 DIN 1629-1984
and pipesfor casing	API SPEC 5CT	J55, N80	API
Seamless steel tubes for oil casing and tubing in oil wells	APE SPEC 5L	A, B, X42	API
Seamles Steel Tubes and Pipes for High Pressure Boiler	GB5310-1995	20G, 20MnG, 25MnG, 15MoG, 20MoG, 12Cr1MoVG, 15CrMoVG, 12Cr2MoG, 12Cr2MoWVTiB, 12Cr3MoVSiTiB,	ASTM A106-96a ATSM A213-95a JIS G3461-1988 JIS G3462-1998 DIN 17175-1979 BS3059Part 21990
Seamless Steel Tubes for low and Medium Pressure Boilers	GB3087-1999	10, 20	ASTM A179, ASTM A192 ASTM SA179,SA192, BS3059
Seamless Steel Tubes for high pressure --Chemical fertilizer equipment	GB6479-86	10, 20G, Q345, Q390, 10MoVNb, 12CrMo, 15CrMo, 12Cr2Mo	ISO 9329-2-1997 ASTM A161-94
Seamless steel tubes for petroleum cracking	GB9948-86	10, 20, 12CrMo, 15CrMo, 1Cr2Mo, 1Cr5Mo,	JIS G3441-1988

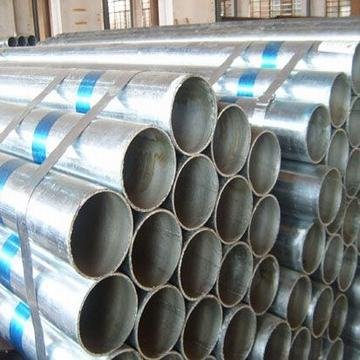

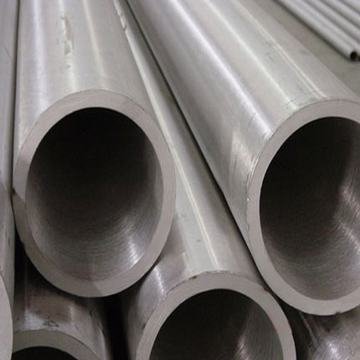

1 (17).jpg 1 (28).jpg

China GB	ASTM	DIN 17175
10#	ASTM A106 Gr.A ASTM A53 Gr.A ASTM A179-C ASTM A214-C ASTM A192	St 37-2 St 35.8 St 35.4
20#	ASTM A106 Gr.B ASTM A53 Gr.B ASTM A315 Gr.B ASTM A210-A-1	St 42 St 45
16Mn	ASTM A210-C	St 52.4 St 52.3 St 52
45#	ASTM 1045	CK45

1 (13).jpg

Features and Benefits :

Material:Carbon steel

Tolerance: meet the standard.

Standard:
ASTMA106Gr.B,;ASTMA53GR.B,APISPEC5LGR.B,BS1387,ASTMA179,ASTMA192,CA335,ASTMA333,DIN1629,ASTM A500-98,ASTM A500-98,ASTM A501-9JIS G3444-19948,ASTN A519-98,JISG3441-1994,ASTMA53-98,ASTMA192,ASTMES192,JISG3452

Application:The products are widely used in fertilizer, petroleum, centra-station, boiler, power station, shiping military, chemical industry, environment protection, traffic, food industry, medical equipement and so on.
Payment: T/T and L/C or negotiation

Protection: supply varnish coating, bevel end, plastic cap.

Supplementary requirements customers required are acceptable.

At last, we sincerely hope that we could establish long term business relations with your esteemed company. And your specific inquiry will be highly appreciated!
