A333 Gr.10 Steel Pipe,A333 PIPES FOR LOW TEMPERATURE SERVICE

Home > 2 st2


ASTM A333 Grade 10 alloy pipe shall be made by the seamless or welding process with the addition of no filler metal in the welding operation.
ASTM A333 Grade 10 seamless and welded carbon and alloy steel pipe intended for use at low temperatures.
ASMT A333 Grade 10 seamless and welded pipes shall be treated to control their microstructure. Tensile tests, impact tests, hydrostatic tests, and nondestructive electric tests shall be made in accordance to specified requirements.

Item low temperature tube A333 Gr.10
Standard ASTM,JIS,DIN,AISI,GB
Material

A333, Gr.1,Gr.3,Gr.4,Gr.6,Gr.7,Gr.8,Gr.9,Gr.10,Gr.11 ,etc

Surface Black painted,PE coated,galvanized
Length 6m,5.8m,11.8m,12m, or as required
Wall Thickness 1mm-120mm
Outer Diameter 8mm-2500mm
Payment Terms T/T,L/C,western union
Price terms FOB,CIF,CFR,EXW

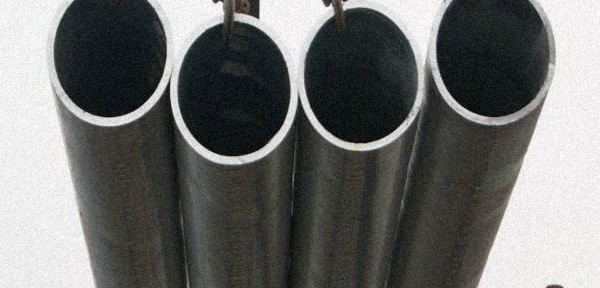

A333 Gr.10 Steel Pipe

Seamless and Welded Steel Pipe size for Low-Temperature Service:

  • Outer Dimensions: 19.05mm -114.3mm
  • Wall Thickness:2.0mm-14 mm
  • Length: max 16000mm

Application: Seamless and Welded Steel Pipe for Low-Temperature Service.
Steel grade: ASTM A333 Grade 10
Inspection and Test:

  • Chemical Composition Inspection, Mechanical Properties Test
  • Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test
  • Surface and Dimension Test,No-destructive Test, Hydrostatic Test.

ASTM A333 Grade 10 Chemical Compositions(%)

Elements Composition, %
Carbon(max) 0.2
Silicon 0.10-0.35
Manganese 1.15-1.50
Phosphorus(max) 0.03
Sulfur(max) 0.015
Chromium 0.15
Nickel 0.25
Copper 0.015
Molybdenum 0.50
Vanadium 0.12
Aluminum 0.06

ASTM A333 Grade 10 Mechanical Properties

Grade Tensile Strength (Mpa) Yield Point (MPa) Elongation (%)
Y X
ASTM A333 Grade 10  550  450  22

Strike Temperature Condition

Grade The lowest temperature for strike test

ASTM A333 Gr.10 -75 -60
