One of the Top 500 enterprises in China foreign trade
QCCO was approved as a member of “China Association for Contracting Projects Abroad “and granted a membership certificate on Sep 28,2005; “Credibility Rating AAA certificate in Foreign Trade” was granted to QCCO by China Shippers’ Association

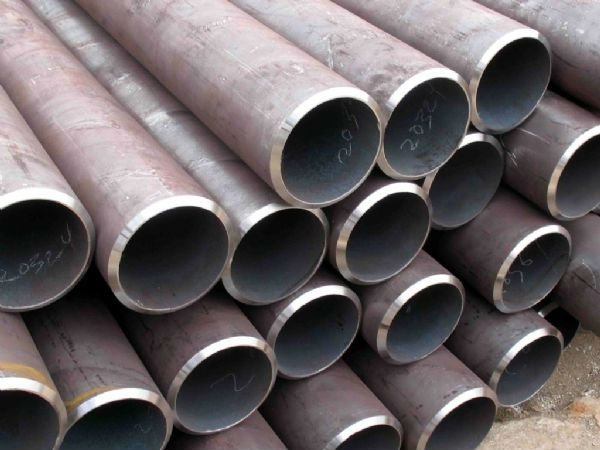

Seamless Steel Pipe A106 Gr.B
OD:20-630mm WT:6-30mm
Standard:GB(20#,45#,16Mn)ASTM(A106b)
Length:5.8-12m
Technique:Seamless
Seamless Steel Pipe A106 Gr.B
Seamless fluid pipe for the fluid,geology cracking,electronic shipping and etc.
Size:OD:20-630mm WT:6-30mm
Length:5.8-12meters
\ (Fixed length or Random Length)
Technique:Seamless
Material:GB(20#,45#.16Mn)ASTM(A106b)
Certificate:MILL TEST CERTIFICATE,AND BV,SGS OR OTHERS ACCORDING TO THE CLIENTS REQUIREMENTS.
Grade and Chemical Composition(%)
|
Grade |
C≤ |
Mn |
P≤ |
S≤ |
Si≥ |
Cr≤ |
Cu≤ |
Mo≤ |
Ni≤ |
V≤ |
|
A |
0.25 |
0.27-0.93 |
0.035 |
0.035 |
0.10 |
0.40 |
0.40 |
0.15 |
0.40 |
0.08 |
|
B |
0.30 |
0.29-1.06 |
0.035 |
0.035 |
0.10 |
0.40 |
0.40 |
0.15 |
0.40 |
0.08 |
|
C |
0.35 |
0.29-1.06 |
0.035 |
0.035 |
0.10 |
0.40 |
0.40 |
0.15 |
0.40 |
0.08 |
Mechanical Properties
| Grade | Rm Mpa Tensile Strength | Mpa Yield Point | Elongation A | Delivery Condition |
| A | ≥330 | ≥205 | 20 | Annealed |
| B | ≥415 | ≥240 | 20 | Annealed |
| C | ≥485 | ≥275 | 20 | Annealed |
Packing:In bundle of max 2 Ton each,tied by the steel strips
Shippment:On the 20ft or 40 ft containers
Payment terms:L/C or T/T
Certificate:Mill Test Certificate(According to the requirements)
Usage:a:Transportation service
b:Liquid appliance
If you have any other question,please contact me.Thank you very much.
