Hot dip galvanized steel pipe weight list

Home > pipearc

Hot dip galvanized steel theoretical weight list

Welded pipe and galvanized pipe weight list(GB/T3091-2001 standard execution)

Welded pipe and galvanized pipe

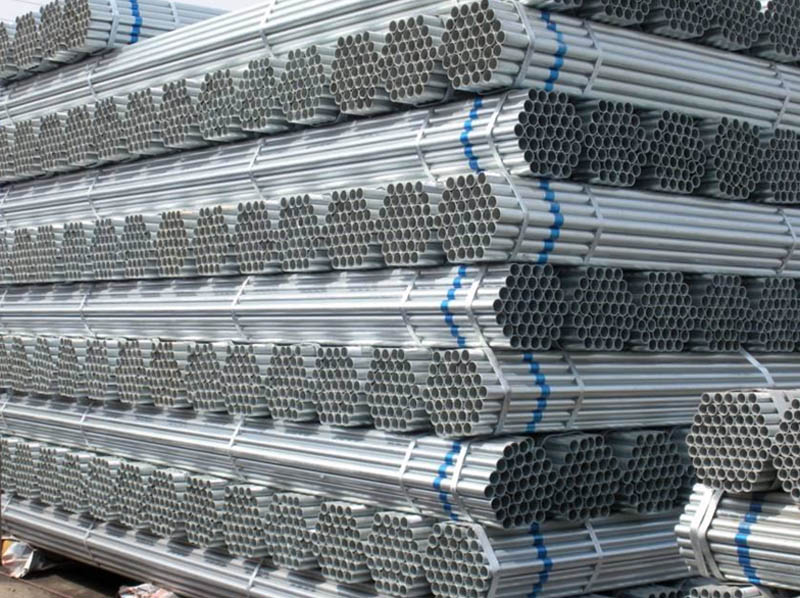

galvanized steel pipe

Specification		Diameter mm	Wall thickness mm	Minimum wall thickness mm	Welded pipe (6 meters Length)		Galvanized pipe (6 meters Length)
Specification					Meters Weight (kg)	Root weight kg	Meters Weight (kg)	Root weight kg
Nominal inside diameter	Inch				Meters Weight (kg)	Root weight kg	Meters Weight (kg)	Root weight kg
DN15	1/2	21.3	2.8	2.45	1.28	7.68	1.357	8.14
DN20	3/4	26.9	2.8	2.45	1.66	9.96	1.76	10.56
DN25	1	33.7	3.2	2.8	2.41	14.46	2.554	15.32
DN32	1.25	42.4	3.5	3.06	3.36	20.16	3.56	21.36
DN40	1.5	48.3	3.5	3.06	3.87	23.22	4.10	24.60
DN50	2	60.3	3.8	3.325	5.29	31.74	5.607	33.64
DN65	2.5	76.1	4.0	3.5	7.11	42.66	7.536	45.21
DN80	3	88.9	4.0		8.38	50.28	8.88	53.28
DN100	4	114.3	4.0		10.88	65.28	11.53	69.18
DN125	5	140	4.5		15.04	90.24	15.942	98.65
DN150	6	168.3	4.5		18.18	109.08	19.27	115.62
DN200	8	219.1	6.0 (pipe)		31.53	189.18
DN200	8	219.1	6.5 (hot dip galvanized)				36.12	216.72

How the DN in the galvanized steel pipe industry converted into MM

Φ "and" DN "is generally used to indicate the hot dip galvanized steel pipe diameter difference is:

"Φ" identifies the common diameter of the circle, or the outer diameter of the galvanized pipe is multiplied by the wall thickness, such as: Φ25 × 3 identifies the outer diameter of 25mm, a wall thickness of a galvanized pipe of 3 mm; "DN": identifies the pipes and valves, and other pipe fittings nominal diameter, usually close to the inner diameter. Is established for the project installation supporting standard terminology.

Φ is said outside diameter, and DN inner diameter DN: Nominal diameter Ф: outside diameter

Tubes now are generally inch units, millimeters only a relatively approximate, easy to remember number.

Instance DN50 tube should be 2 inches, 1 inch = 25.4mm, 2 inches should be 50mm, this time will depend on the wall thickness of the tube, generally helical coil are more than 5mm to 5mm, for example, the outer diameter of the tube of the DN50 should be in about 60mm.
