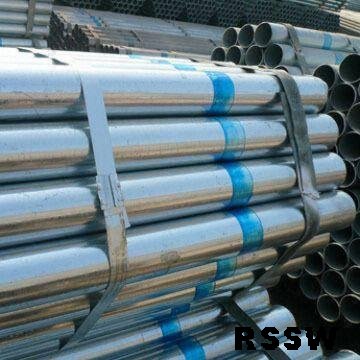

Product Description
Outer diameter: 21.3-219mm
Wall thickness: 0.4-13mm
Length: 3-12mspiral steel pipe|
| Nominal(DN) | Outside diameter | Wall thickness |
Caculated weight (6 meter per piece) |
Pcs/Bundle | |||||||
| in | mm | max | min | max | min | in | mm | Plain end | Screwed and socketed | ||
| in | in | mm | mm | kg/m | kg/pc | kg/pc | |||||
| 1/2 | 15 | 0.854 | 0.531 | 21.7 | 21.1 | 0.104 | 2.6 | 1.21 | 7.26 | 7.27 | 127 |
| 3/4 | 20 | 1.071 | 1.047 | 27.2 | 26.6 | 0.104 | 2.6 | 1.56 | 9.36 | 9.37 | 127 |
| 1 | 25 | 1.347 | 1.315 | 34.2 | 33.4 | 0.128 | 3.2 | 2.41 | 14.46 | 14.48 | 91 |
| 1 1/4 | 32 | 1.689 | 1.658 | 42.9 | 42.1 | 0.128 | 3.2 | 3.10 | 18.60 | 18.63 | 61 |
| 1 1/2 | 40 | 1.921 | 1.890 | 48.8 | 48.0 | 0.128 | 3.2 | 3.57 | 21.42 | 21.46 | Oil pipeline |61 |
| 2 | 50 | 2.394 | 2.354 | 60.8 | 59.8 | 0.144 | 3.6 | 5.03 | 30.18 | 30.25 | 37 |
| 2 2/1 | 65 | 3.016 | 2.969 | 76.6 | 75.4 | 0.144 | 3.6 | 6.43 | 38.58 | 38.70 | 19 |
| 3 | 80 | 3.524 | 3.469 | 89.5 | 88.1 | 0.160 | 4.0 | 8.37 | 50.22 | 50.39 | Galvanized steel pipe|19 |
| 4 | 100 | 4.524 | 4.461 | 114.9 | 113.3 | 0.175 | 4.5 | 12.2 | 73.20 | 73.50 | 7 |
| 5 | 125 | 5.535 | 5.461 | 140.6 | 138.7 | 0.197 | 5.0 | 16.6 | 99.60 | 100.1 | 7 |
