BS 1387 Carbon steel Steel Pipe


Products Name:
BS 1387 ERW Welded Carbon Pipe

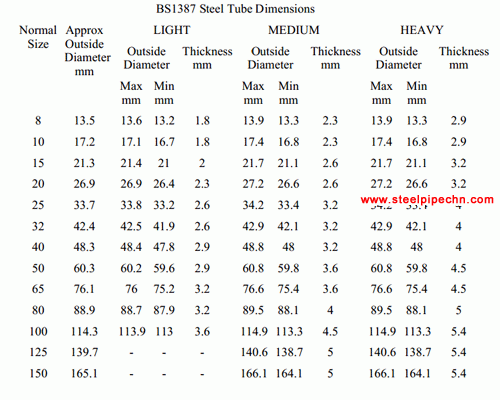

bs1387 steel pipe dimensions

Description:
1. Specification: BS 1387
2. Specification for Screwed and Socketd steel tubes and tubulars and for plain end steel tubes suitable for welding or for screwing to BS 21 pipe threads
3. Type: Electric Resistance Welded(ERW)
4. Size: Nominal size DN 25 to DN 150 in three series of thickness, designated light, medium and heavy.
5. Length: as customer¡¯s requirement.
6. Ends: Small sizes are plain, Large sizes are beveled, or according to customers requirement
7. Packing: In bundles, If need, all the pipes can be also covered in waterproof wrapping.
8. Testing: Chemical Composition, Tensile test, Bending test, Flattening Tests and etc.As customers requirement.

Chemical Composition

BS1387

Mfg. Process

Chemical Composition (%)

C

Mn

P

S

S,W

0.2

1.2

0.045Max

0.045Max

 Mechanical Properties

BS1387

Yield point Min Mpa

Tensile Strength Mpa

Elongation (%)

≥195

325~460

≥20
