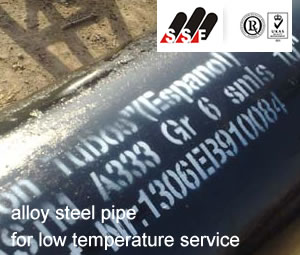

ASTM A333 Gr1 low temperature steel pipe

1.boiler tubes in Gr1 as per ASTM A333 standard.
2.Third inspection cert.
3.Mainly exported to Europe and Amercia market

Heat Treatment:

Option 1:Normalize by heating to a uniform temperature of not less than 815 cent the air or inigrade and cool in the cooling chamber of an atmosphere controlled furnance. And then, reheat to a suitable tempering temperature.

Option 2: For seamless only. Reheat and control hot working and temperature of the hot-finishing operation to a finishing temperature range from 845 centigrade to 945 centigrade and cool in air or in a controlled atmosphere furnace from an initial temperature of not less than 845 centigrade. And then, reheat to a suitable tempering temperature.

Preparation of the specimens:

1. Material from which specimens are to be taken will be heat treated prior to preparation of specimens.and will be taken from full thickness test pieces which have been stress relieved .

2. The test pieces will be gradually and uniformly heated to the prescribed temperature, held at that temperature for a period of time in accordance with following description and then furnace cooled at a temperature not exceeding 315 centigrade.

Metal Temperature(°C)

Min Holding Time(min/mm) of Wall Thickness

600

2.4

565

4.7

540

7.1



 Chemical composition:

 Steel Grade

C

Mn

P

S

Grade 1

0.30 max

0.40-1.06

0.025 max

0.025 max



 Mechanical Performance:

Steel Grade

Tensile strength

Min

Yield Strength

Min

Elongation  in 2in.or 50mm, min,%

Impact Requirements(10*10)(-45°C)

(psi)

(Mpa)

(psi)

(Mpa)

Longitudinal

Transverse

Min Average Notched Bar Impact Value of each set of three specimens

Min Notched Bar Impact Value of one specimen only of a set

Gr 1

55000

380

Min30000

205

35

25

18J

14J





Product Name:
Steel Pipes for Low Temperature Service
Low Temperature Seamless Steel Pipes

ASTM A333 Gr.1 Steel pipe

ASTM A333 Gr.3 Steel pipe

ASTM A333 Gr.6 Steel pipe

ASTM A333 Gr.1, 3, 6

ASTM A333 seamless pipe

ASTM A333 alloy pipes


2). Features:

 steel pipe for low temperature pipe
steel pipe for low temperature serviceA) Process method: Cold drawn/Hot rolled/Hot expansion

B) Surface finish: Varnish/Paint

3). Standard and steel grades available:
ASTM A333 Gr.1, 3, 6

4) Size:
A)NPS: 1/2" to 24"
B) Schedule: 10S, 20, 30, 40/40S, 60, 80/80S, 100, 120, 140, 160, STD, XS, XXS
C) O.D.: 21.3mm to 609.6mm
D) W.T.: 2.11mm to 60mm
E) Length: Max.12meters

5) Packing: Seaworthy in bundles
6) Inspection: Third Party
