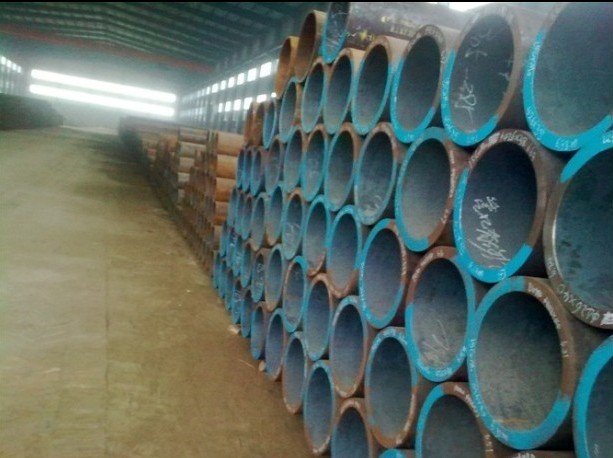

BRAND NAME: ASME pipe

MATERIAL: CARBON ALLOY AND STAINLESS STEEL PIPE

STANDARD: ANSI, JIS, DIN, GB



  • asme  pipe
  • material-alloy steel(A335P11,P22 ,P12,P5, P9,P91,12Cr1MoV )/carbon steel(SA106Gr.B SA106Gr.C )
  • standard-ASTM DIN JIS
  • size-1/2-24 inch
  • wall thickness-sch10-sch160,XXS
  • surface treatment-rust proof oil,3LPE coating
  • package-seaworthy package. wooden pallet
  • application-boiler heat, exchange, shipbuilding, construction
  • the third party inspection-BV,SGS,TUV
  • certificate-ISO9001-2000,API,CE
  • inspection-X- ray detection ,UT
  • Normal Dimension NPS size length(mm) Reference Weight(KG)
    outer diameter inner diameter thickness
    DN100 4 inch 114.3 94.3 10 2000 51.4
    DN125 5 inch 141.3 121.3 10 2000 64.8
    DN150 6 inch 168.3 148.3 10 2000 78.1
    DN200 8 inch 219.1 199.1 10 2000 103.1
    DN250 10 inch 273 253 10 2000 129.7
    DN300 12 inch 323.8 303.8 10 2000 154.8
    DN350 14 inch 355.6 335.6 10 2000 170.4
    DN400 16 inch 406.4 386.4 10 2000 195.5
    DN450 18 inch 457 437 10 2000 220.5
    DN500 20 inch 508 488 10 2000 245.6
