Concrete Pump Delivery Pipe

Home > 2 st2

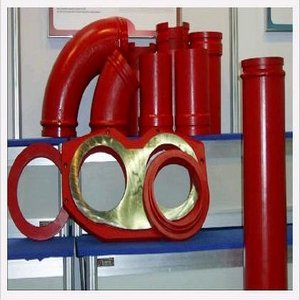

Concrete Pump Delivery Pipe

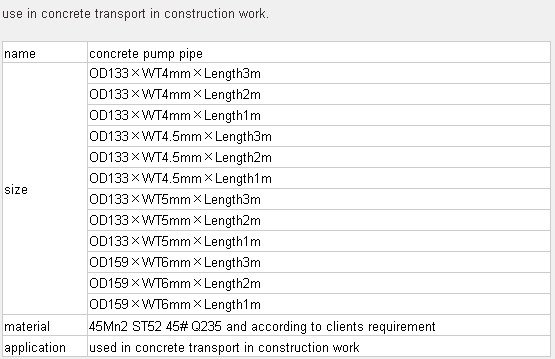

Material:20#,45Mn2,37Mn5,St-52
Size: DN125 DN150
WT: 2mm to 10mm
Working Capacity:25000-35000

Concrete Pump Pipe is made of special quality steel which is quenched and carried out carburizing chemical treatment on the inner wall. The hardness of the flanged bushings can reach 58-60 degrees and the serving life of pipeline can increase 3-5 times,which enables users to save time and cost, enhancing the production efficiency.

Material : High Manganese casting such as ST52,37Mn5,45Mn2

Wall Thickness: 2mm to 10mm or more

Length: 1m, 2m, 3m or according to the customer's requirement

Working Capacity: 25000-35000cbm



Application: Used for the concrete transportation in construction work

pump pipe



 2010-05-28_102030__22010-05-28_102001__1
