Steel Pipe Piling Supply, ASTM A252 Piling,A252 Bridge Pilin

Steel Pipe Piling Supply, Pipe Piles, Foundation Piling, Bridge Piling Pipe ASTM A252



ASTM A252 Steel Pipe Pilings

QCCO Pipe offers a full range of ERW Steel Pipe, 8 5/8", 10 ¾", 12 ¾", 14", 16", 18", 20", 22", 24" and larger to 48", in various wall thicknesses from 3/16" - ¾". Pile beveling standards include "cut to 30º beveled angles" and weld filled. ERW ASTM A252 piling is available in Grade 2 and Grade 3, as "bare pipe" or optionally coated direct from our plant.

► ASTM A252 Grade 2 60,000 psi min. Tensile 35,000 psi minimum Yield ◄
► ASTM A252 Grade 3 66,000 psi min. Tensile 45,000 psi minimum Yield ◄

Steel Pipe Piling , ASTM A252 Piling,A252 Bridge Piling Pipe

ERW Carbon Steel Pipe Fabrication
Pipe Pilings & Steel Casings


Structural Grade pipe piles on our yard
ERW ASTM A252: Structural Pipe Distributor, Sales & Supply



ERW ASTM A252 Pipe Gr. B

ASTM A 252 Grade 2
ASTM A 252 Grade 3


1. Outer Diameter:21.3 - 610 mm
2.Thickness:1.8 - 22 mm
3.Length:1-24m

Product name

ERW  ASTM A252 Pipe Gr. B

Out Diameter

21.3mm-610mm, 1/2”-24”

Wall Thickness

1.8mm-22mm, SCH 5S, SCH 10S, SCH10, SCH20, SCH30, SCH40S, STD, SCH40, SCH60,

SCH80S, XS, SCH80 etc.

Length

1m-24m

Standard

API 5L, API 5CT, ASTM A53, ASTM A252, ASTM A500, ASTM A795, BS1387, BS1139,

EN10255, EN10219, EN10217, EN39, DIN2440/2444, ISO3183, ISO11960, JISG3444,

JISG3454 etc.

Quality grade

First class, prime, newly produced, secondary , stock etc.

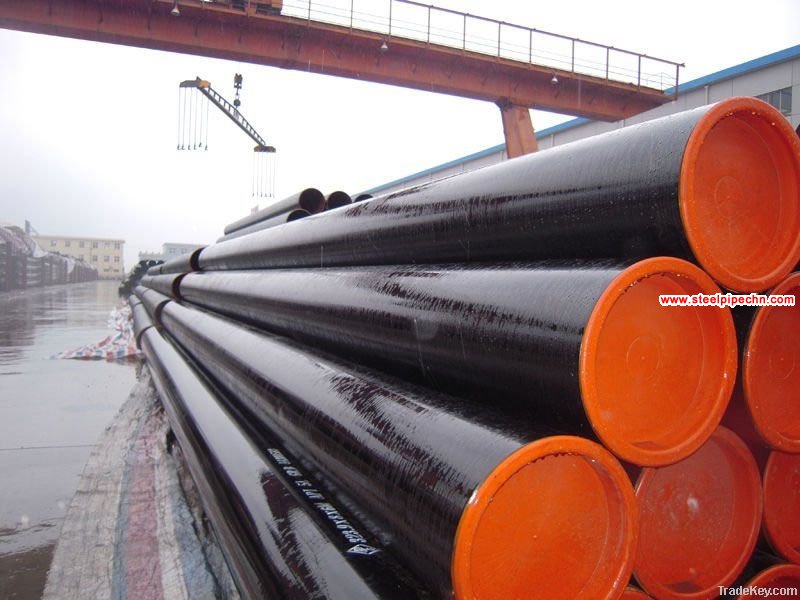

We custom fabricate and sell pipe to customers serving construction segments such as building construction, road construction, bridge construction, utility construction, marine construction, and oilfield construction just to name a few. Our Welded Steel Pipe finished products are installed by those performing horizontal road boring, directional drilling, and pile driving procedures for these industries. We have two specialty niches. The first includes fabricating 20' dead length stock sections for use as Steel Casings, such as Road Bore casing, Culvert casing, Open Cut casing, Open Tunnel casing, and Water Well casing. The picture above shows some of these 20' sections on our yard. The second includes custom fabricating Steel Pipe Pilings, such as Foundation piling, Bridge piling, and Marine piling, including pier pilings, dock pilings, and deep water pipe pilings to length.

Certificate

EN10217, EN10219, API 5L PSL1/ PSL2, KS 4602, KS3583, GB/T9711.1/2,etc.

End

Plain end, beveled, cut square, grooved, threaded and coupling, etc.

Surface

Bare, varnished, black lacquer, Bitumen Coating, zinc coating, anti-corrosion coating, 3PE,

FBE,Epoxy, Cement Mortar, as per customer’s requirement;

Hydrostatic Test Range

Max Length 21 meters; Max Diameter 2600mm;

Test

Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength,

Elongation), Metallographic Test, Technical Properties (Bending Test,Charpy-v Impact Test,

Hydrostatic Test, X-ray Test, Ultrasonic Test)

Packing

Small sizes packed by steel strips into bundles, big sizes in loose pieces; can be packed as

customers’ special requirements

Application

- line pipe for use in pipeline transportation systems in the petroleum and natural gas industries

-for use as casing and tubing for wells, screwed and socketed steel tubes andtubularand for

plain end steel tubes

- suitable for welding or for screwing to BS21 pipe threads, loose steel tubes, scaffolds

- used for the conveyance of fluids as well as for other applications, applies to pipe

piles in which the steel cylinder acts as a permanent load-carrying member, or as a shell to

form cast-in-place concrete piles



- for welded, riveted,or bolted construction of bridges and buildings, and for general

structural purposes

- suitable for nominal pressure 25 for liquids and nominal pressure 10 for air and non-hazardous gases

- pressure purposes

- applies to structural hollow sections

- general structure purpose and pressure service etc.

Mill Test Certificate

EN 10204/3.1B
