One of the Top 500 enterprises in China foreign trade
QCCO was approved as a member of “China Association for Contracting Projects Abroad “and granted a membership certificate on Sep 28,2005; “Credibility Rating AAA certificate in Foreign Trade” was granted to QCCO by China Shippers’ Association
1.Outer diameter:1/2 inch-6 inch
2.Wall thickness:1.2mm-5.4mm
3.Usage: fluid pipe,sturcture pipe
galvanized steel pipe Dimensions:
|
Nominal bore |
Outside diameter |
Thickness |
Mass |
||||||
|
Light |
Medium/ |
Light |
Medium |
Heavy |
Light |
Medium |
Heavy |
||
|
in |
mm |
mm |
mm |
mm |
mm |
mm |
kg/m |
kg/m |
kg/m |
|
1/4 |
8 |
13.60 |
13.90 |
1.80 |
2.30 |
2.90 |
0.515 |
0.641 |
0.765 |
|
3/8 |
10 |
17.10 |
17.40 |
1.80 |
2.30 |
2.90 |
0.670 |
0.839 |
1.020 |
|
1/2 |
15 |
21.40 |
21.70 |
2.00 |
2.60 |
3.20 |
0.947 |
1.210 |
1.440 |
|
3/4 |
20 |
26.90 |
27.20 |
2.30 |
2.60 |
3.20 |
1.380 |
1.560 |
1.870 |
|
1 |
25 |
33.80 |
34.20 |
2.60 |
3.20 |
4.00 |
1.980 |
2.410 |
2.940 |
|
1 1/4 |
32 |
42.50 |
42.90 |
2.60 |
3.20 |
4.00 |
2.540 |
3.100 |
3.800 |
|
1 1/2 |
40 |
48.40 |
48.80 |
2.90 |
3.20 |
4.00 |
3.230 |
3.570 |
4.380 |
|
2 |
50 |
60.20 |
60.80 |
2.90 |
3.60 |
4.50 |
4.080 |
5.030 |
6.190 |
|
2 1/2 |
65 |
76.00 |
76.60 |
3.20 |
3.60 |
4.50 |
5.710 |
6.430 |
7.930 |
|
3 |
80 |
88.70 |
89.50 |
3.20 |
4.00 |
5.00 |
6.720 |
8.370 |
10.300 |
|
4 |
100 |
113.90 |
114.90 |
3.60 |
4.50 |
5.40 |
9.750 |
12.200 |
14.500 |
|
5 |
125 |
|
140.60 |
|
5.00 |
5.40 |
|
16.600 |
17.900 |
|
6 |
150 |
|
166.10 |
|
5.00 |
5.40 |
|
19.700 |
21.300 |

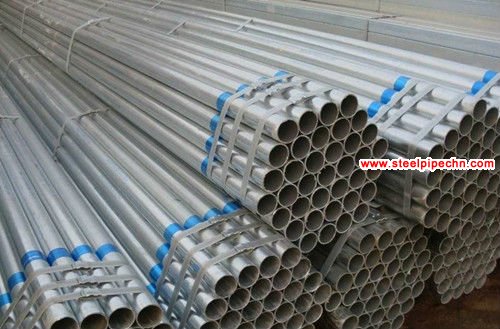

BS1387 A B C Galvanized Steel Pipes(G.I. Pipe) :
galvanized steel thread and coupling according to ASTM NPTand BS BSP standard GPE galvanized plain end DN15-DN150
|
O.D |
20mm-165mm |
|
O.D tolerance |
±0.03mm |
|
W .T |
1.2mm-5.4mm |
|
Length |
2—12m,As customers requirement |
|
International Standard |
ISO 9001;2000, BV |
|
Standard |
BS1387-1985, ASTM-A53A, GB/T3091-2001 |
|
Material |
Q195/Q215/Q235/Q345 |
|
Product Category |
Metallurgy,Mineral &Energy |
