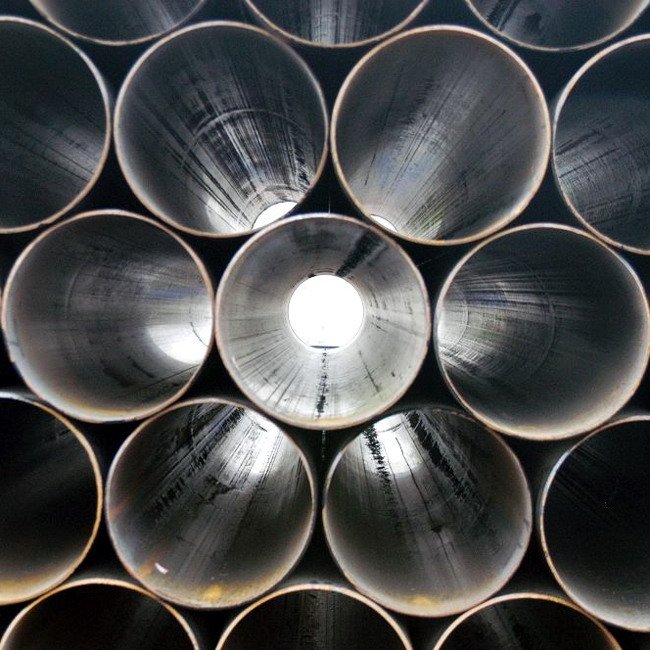

API 5L ERW Carbon Steel Line Pipe

API 5L ERW Carbon Steel Line Pipe

 >OD:10-273mm  WT:0.5-20mm

>Length:5-12m

>Standard:BS, JIS, GB, DIN, ASTM, API

 >Certificates:ISO

Line Pipes
API 5L PSL1/PSL 2 Line Pipe: Gr. B X42, X46, X52, X56, X60, X65, X70, X80/BM.X42M,X46M,X52M,X60M,X65M,X70,X80M
API 5L ERW Carbon Steel Line Pipe

PSL 1: Chemical components and mechanical property

Class and Sort Chemical components Mechanical property
C(Max) Mn(Max) P(Max) S(Max) Tensile Strength(Min) Yield Strength(Min)
A25 CL I 0.21 0.60 0.030 0.030 45.000 310 25.000 172
CL II 0.21 0.60 0.030 0.030
A 0.22 0.90 0.030 0.030 48.000 331 30.000 207
B 0.28 1.20 0.030 0.030 60.000 414 35.000 241
X42 0.28 1.30 0.030 0.030 60.000 414 42.000 290
X46 0.28 1.40 0.030 0.030 63.000 434 46.000 317
X52 0.28 1.40 0.030 0.030 66.000 455 52.000 359
X56 0.28 1.40 0.030 0.030 71.000 490 56.000 386
X60 0.28 1.40 0.030 0.030 75.000 517 60.000 414
X65 0.28 1.40 0.030 0.030 77.000 531 65.000 448
X70 0.28 1.40 0.030 0.030 82.000 565 70.000 483
