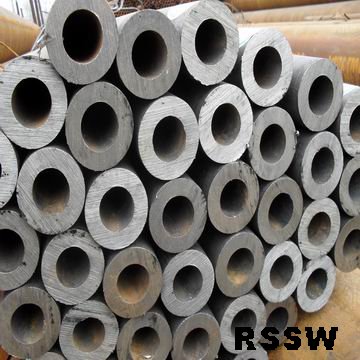

ASTM A106/A53GR.B Large diameter thick wall steel pipe

 Specifications

Large diameter steel pipe:
1) ISO9001 and API certificates
2)OD:33.4-508mm
3)WT:2-70mm Galvanized steel pipe|
4) LTH:2-12L

We have got two complete production line as:

-, Cold drawn from size 1/4"-5" OD pipe.

-, Hot rolled from size 6"-16" OD pipe, also we can work from size 20"-24" as hot expand pipe.

 spiral steel pipe|



Also,we have got carbon steel pipe for liquid use (ASTM A106/A53GR.B), steel pipe for casing (P-110, K55, N80 and so), steel pipe for pipeline (API5L GR.B, X42, X52, 60, X70), steel pipe for construction (high thickness of ST45, ST52).

1. Seamless steel pipe 1"-16";Seamless pipe |
Drill pipe |

2. Material: ASTM A106 B& A53B
3. ISO 9001 certificate
4. Market: Middle East; Asia; Africa

1. Carbon seamless steel pipe

2. Standard:

   ASME SA106/53B

   ASTM A106/53BWelded steel Pipe

   GB/T8162 GB/T8163

   API 5L GR.B

   DIN2391

   JIS S20C S45C

3. Grade: A53B A106B 20# 45# 16Mn st52;

4. Size: 1"-16" SCH40 SCH80 SCH160Oil pipeline |


4. Processing technique: hot rolled/cold drawn;

5. Length: 6-12m

6. Surface: painted with varnish;Casing Pipe |

7. Plastic caps at ends.

8. Tolerance: OD   +1%/-1%

                WT  +12.5%/-10%

9. Chemical composition:



Models of Steel Pipes

Chemical Component



Steel 20

 (ASTM A106B)

C

Si

Mn

P

S

Cu

Ni

Cr

0.17~0.24

0.17~0.37

0.35~0.65

0.035max

0.035max

0.25max

0.25max

0.25max

Steel45 (ASTM 1045)

0.42~0.50

0.17~0.37

0.50~0.80

0.035max

0.035max

0.25max

0.25max

0.25max

16Mn(Q345B)

0.12~0.20

0.20~0.55

1.20~1.60

0.035max

0.035max

0.25max

0.25max

0.25max

45Mn2 ( ASTM1345)

0.42~0.49

0.17~0.37

1.40~1.80

0.035max

0.035max

0.3max

0.3max

0.30max
