310s Stainless Steel Pipe

Home > 2 st2


310 stainless steel, also known as UNS S31000 and Grade 310, contains the following primary elements: . 25% maximum carbon, 2% maximum manganese, 1.5% maximum silicon, 24% to 26% chromium, 19% to 22% nickel, traces of sulfur and phosphorus, with the balance being iron. Type 310 is superior in most environments to 304 or 309 due to its relatively high chromium and nickel content. It exhibits a combination of good strength and corrosion resistance in temperatures up to 2100° F. Cold working will cause 309 to increase in hardness and strength, and it does not respond to heat treatment.

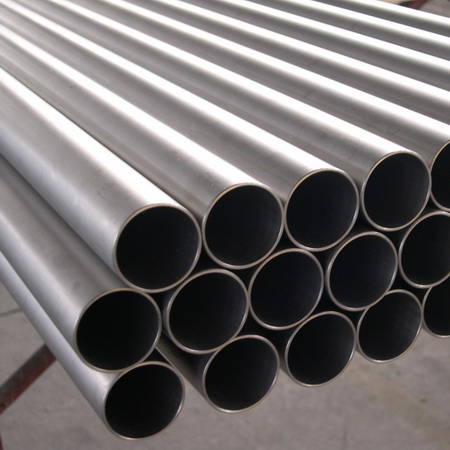

Stainless-Steel-Pipe
Stainless Steel Pipe
1. Standard: AISI, ASTM, GB, JIS, BS, DIN
2. Material: TP 201, TP304, TP304L, TP309S, TP310S, TP316L, TP316, TP321 and others
3. Size: (ANSI/ASME size as under, other standards of size is for ready choice).
Seamless: 1). Out Diameter: ANSI 1/8"-12"(6mm-323mm) 2). Wall Thickness: ANSI 5S-160S (0.5mm-30mm)
Welded: 1). Out Diameter: ANSI 1/8"-48"(8mm-1200mm) 2). Wall Thickness: ANSI 5S-160S (0.5mm-30mm)
4. Length: According to client's requirements
5. Process method: Cold drawn/cold rolled
6. Surface finish: Annealed, pickled, polished
7. Polishing: 80#, 180#, 240#, 320#, 400#
8. Applications: For fluid and gas transport, fertilizer industry, chemical and petrochemical industry
9. Packaging: Standard export packing or according to customer's request
10. Delivery Time: According to the quantity
11. Payment: L/C or T/T
12. Minimum order quantity: 1MT

Stainless Steel Pipe Series(ANSI B 36.10: 36.19)
NPS OD(mm)   5S 5 10S 10 20 30 40S 40 60 80S 80 100 120 140 160
  1/8 10.3 WT     1.24 1.24   1.45 1.73 1.73   2.41 2.41
Kg/m     0.28 0.28   0.32 0.37 0.37   0.47 0.47
  1/4 13.7 WT 1.2 1.2 1.65 1.65   1.85 2.24 2.24   3.02 3.02
Kg/m 0.37 0.37 0.49 0.49   0.54 0.63 0.63   0.8 0.8
  3/8 17.1 WT 1.2 1.2 1.65 1.65   1.85 2.31 2.31   3.2 3.2
Kg/m 0.37 0.37 0.63 0.63   0.7 0.84 0.84   1.1 1.1
  1/2 21.3 WT 1.65 1.65 2.11 2.11   2.41 2.77 2.77   3.73 3.73       4.78
Kg/m 0.8 0.8 1 1   1.12 1.27 1.27   1.62 1.62       1.95
  3/4 26.7 WT 1.65 1.65 2.11 2.11   2.41 2.87 2.87   3.91 3.91       5.56
Kg/m 1.02 1.02 1.28 1.28   1.44 1.69 1.69   2.2 2.2       2.9
1      33.4 WT 1.65 1.65 2.77 2.77   2.9 3.38 3.38   4.55 4.55       6.35
Kg/m 1.29 1.29 2.09 2.09   2.18 2.5 2.5   3.24 3.24       4.24
1 1/4 42.2 WT 1.65 1.65 2.77 2.77   2.97 3.56 3.56   4.85 4.85       6.35
Kg/m 1.65 1.65 2.69 2.69   2.87 3.39 3.39   4.47 4.47       5.61
1 1/2 48.3 WT 1.65 1.65 2.77 2.77   3.18 3.68 3.68   5.08 5.08       7.14
Kg/m 1.9 1.9 3.11 3.11   3.54 4.05 4.05   5.41 5.41       7.25
2      60.3 WT 1.65 1.65 2.77 2.77   3.18 3.91 3.91   5.54 5.54       8.74
Kg/m 2.39 2.39 3.93 3.93   4.48 5.44 5.44   7.48 7.48       11.1
2 1/2 73 WT 2.11 2.11 3.05 3.05   4.78 5.16 5.16   7.01 7.01       9.53
Kg/m 3.69 3.69 5.26 5.26   8.04 8.63 8.63   11.4 11.4       14.9
3      88.9 WT 2.11 2.11 3.05 3.05   4.78 5.49 5.49   7.62 7.62       11.1
Kg/m 4.52 4.52 6.46 6.46   9.92 11.3 11.3   15.3 15.3       21.4
3 1/2 102 WT 2.11 2.11 3.05 3.05   4.78 5.74 5.74   8.08 8.08
Kg/m 5.18 5.18 7.41 7.41   114 13.6 13.6   18.6 18.6
4      114 WT 2.11 2.11 3.05 3.05   4.78 6.02 6.02   8.56 8.56   11.1   13.5
Kg/m 5.84 5.84 8.37 8.37   12.9 16.1 16.1   22.3 22.3   28.3   33.5
5      141 WT 2.77 2.77 3.4 3.4     6.55 6.55   9.53 9.53   12.7   15.9
Kg/m 9.46 9.46 11.6 11.6     21.8 21.8   31 31   40.3   49.1
6      168 WT 2.77 2.77 3.4 3.4     7.11 7.11   11 11   14.3   18.3
Kg/m 11.3 11.3 13.8 13.8     28.3 28.3   42.6 42.6   54.2   67.6
8      219 WT 2.77 2.77 3.76 3.76 6.35 7.04 8.18 8.18 10.3 12.7 12.7 15.1 18.3 20.6 23
Kg/m 14.8 14.8 20 20 33.3 36.8 42.6 42.6 53.1 64.6 64.6 75.9 90.4 101 111
10      273 WT 3.4 3.4 4.19 4.19 6.35 7.8 9.27 9.27 12.7 12.7 15.1 18.3 21.4 25.4 28.6
Kg/m 22.6 22.6 27.8 27.8 41.8 51 60.3 60.3 81.5 81.5 96 115 133 155 172
12      324 WT 3.96 3.96 4.57 4.57 6.35 8.38 9.53 10.3 14.3 12.7 17.5 21.4 25.4 28.6 33.3
Kg/m 31.2 31.2 36 36 49.7 65.2 73.9 79.7 109 97.5 132 160 187 208 239
14      356 WT 3.96 3.96 4.78 6.35 7.92 9.53   11.1 15.1   19.1 23.8 27.8 31.8 35.7
Kg/m 34.3 34.3 41.4 54.7 67.9 81.3   94.6 127   158 195 225 254 282
16      406 WT 4.19 4.19 4.78 6.35 7.92 9.53   12.7 16.7   21.4 26.2 31 36.5 40.5
Kg/m 41.6 41.6 47.3 62.6 77.8 93.3   123 160   204 246 287 333 365
18      457 WT 4.19 4.19 4.78 6.35 7.92 11.1   14.3 19.1   23.8 29.4 34.9 39.7 45.2
Kg/m 46.8 46.8 53.3 70.6 87.7 122   156 206   255 310 364 408 459
20      508 WT 4.78 4.78 5.54 6.35 9.53 12.7   15.1 20.6   26.2 32.5 38.1 44.5 50
Kg/m 59.3 59.3 68.6 78.6 117 155   193 248   311 382 441 508 565
22      559 WT 4.78 4.78 5.54 6.35 9.53 12.7     22.2   28.6 34.9 41.3 47.6 54
Kg/m 65.3 65.3 75.6 86.5 129 171     294   374 451 527 601 672
24      610 WT 5.54 5.54 6.35 6.35 9.53 14.3   17.5 24.6   31 38.9 46 52.4 59.5
Kg/m 82.6 82.6 94.5 94.5 141 210   255 355   442 548 640 720 808
26      660 WT       7.92 12.7
Kg/m       127 203
28      711 WT       7.92 12.7 15.9
Kg/m       137 219 272
30      762 WT 6.35 6.35 7.92 7.92 12.7 15.9
Kg/m 118 118 147 147 235 292
32      813 WT       7.92 12.7 15.9   17.5
Kg/m       157 251 312   343
34      864 WT       7.92 12.7 15.9   17.5
Kg/m       167 267 332   365
36      914 WT       7.92 12.7 15.9   19.1
Kg/m       177 282 352   420
