ASTM A53 GR.B PIPE

Seamless Steel Pipe
Standard: ASTM A106 ASTM 53 (GR.A /GR.B)
Size Range: OD 21mm-914mm Thickness Wall: 3mm-60mm


1

Seamless Steel Pipe

Standard

ASTM A53

2

Seamless Steel Pipe

Material

GR.B

3

Seamless Steel Pipe

OD

1/2”-30”

4

Seamless Steel Pipe

WT

SCH10,SCH30,STD,SCH40,XS,SCH80.SCH160

5

Seamless Steel Pipe

Usage

Boiler Use, Water Transport, Building, Machinery, Traffic, Aviation, Oil Development, etc.

6

Seamless Steel Pipe

OD Tolerance

D≤48.3mm,±0.4mm, D>48.3~114.3mm, ±0.79mm

D>114.3mm, +1.5,-0.79mm

7

Seamless Steel Pipe

WT Tolerance

±12.5%

8

Seamless Steel Pipe

Chemical

C:<0.30%,Si:>0.10%,MN:0.29-1.06%,P:<0.035%,S:<0.035%,

Cu:<0.40%,Ni<0.40%,Cr:<0.40%, Mo:0.15%,V:0.08%

9

Seamless Steel Pipe

Tensile strength

≥415MPa

10

Seamless Steel Pipe

Yield Strength

≥240MPa

11

Seamless Steel Pipe

other test

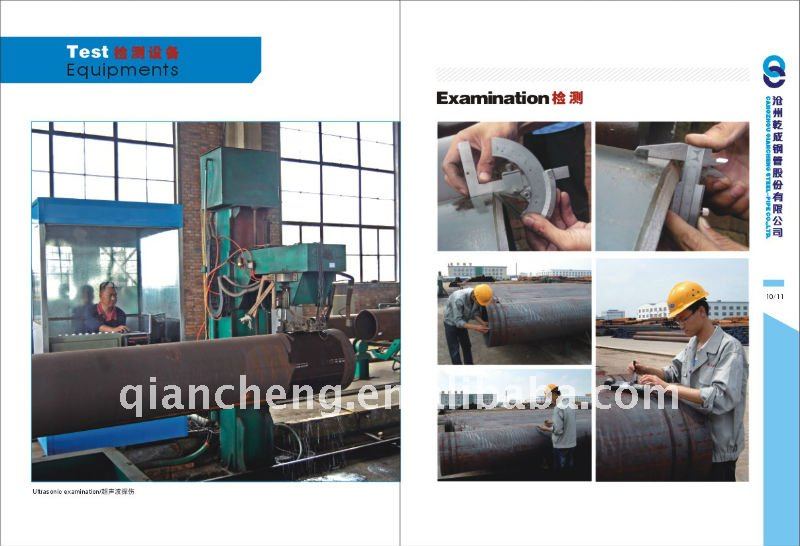

HY,ET

12

Seamless Steel Pipe

Length

2-12m Random,5.8M FIXED,6M FIXED,9M FIXED

13

Seamless Steel Pipe

Surface

Black paint as rusty protect

14

Seamless Steel Pipe

Ends

2"below plain ends,2" above beveled ends

15

Seamless Steel Pipe

Method

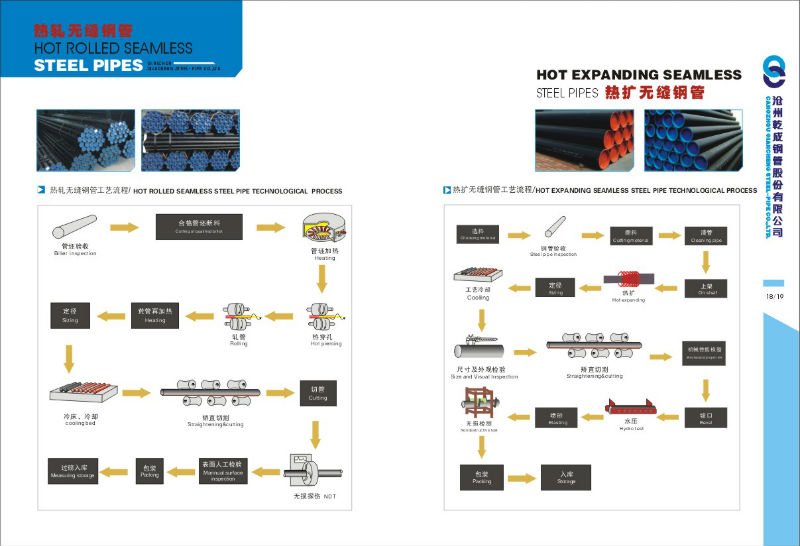

140mm below cold drawn,140mm above hot rolled,273mm above hot expand

16

Seamless Steel Pipe

Packing

6 steel strip, bundles, Caps , plastic wrap, loading belt

17

Seamless Steel Pipe

Min Order

20 Tons

18

Seamless Steel Pipe

Location

Industrial Zone of Yanshan County, Hebei Province, China

19

Seamless Steel Pipe

Distribute area

Singapore, Italy, Greece, Vietnam, Egypt, Iran, Spain, India, Israel, Mexico, Pakistan, Sandi Arabia, Bangladesh, USA, Morocco, Indonesia and so on

20

Seamless Steel Pipe

Contact Manager

Ms Emma Han

 1. Payment term: 30%down payment+ 70%see copy of BL
2. Shipment: WITHIN 45 WORKING DAYS AFTER RECEIPT OF TT
3. Validity: 7 WORKING DAYS

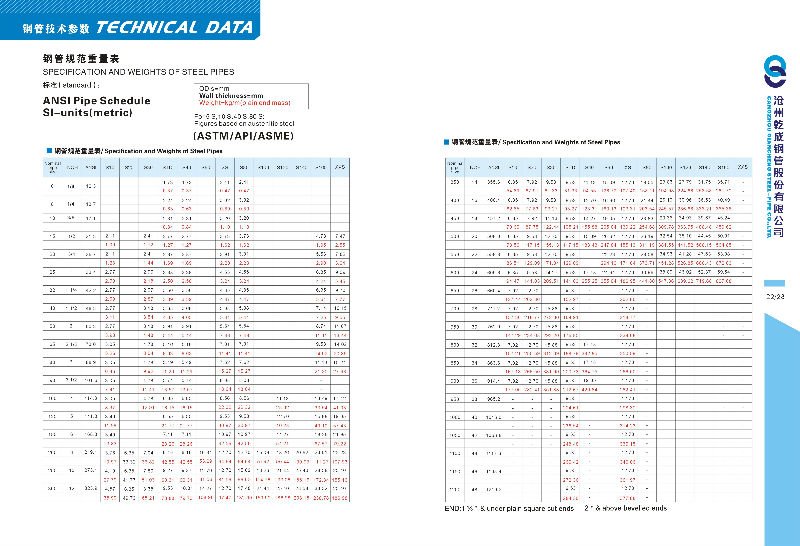

22-23

18-19

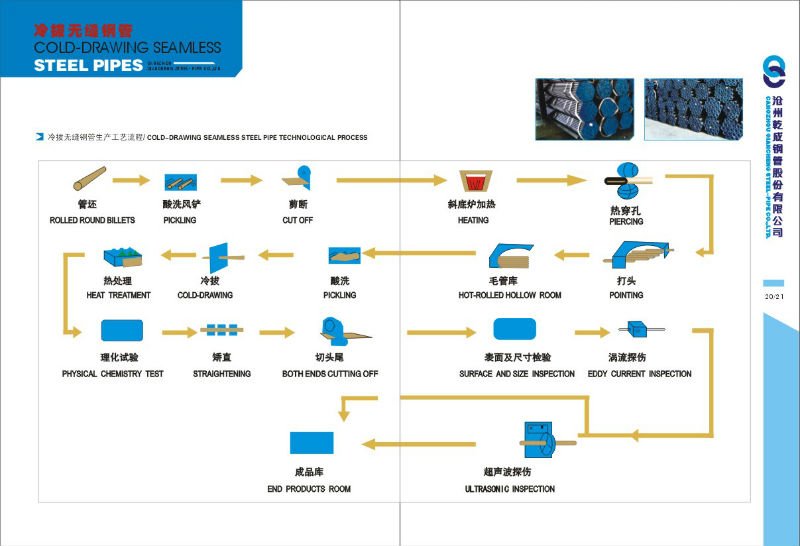

20-21

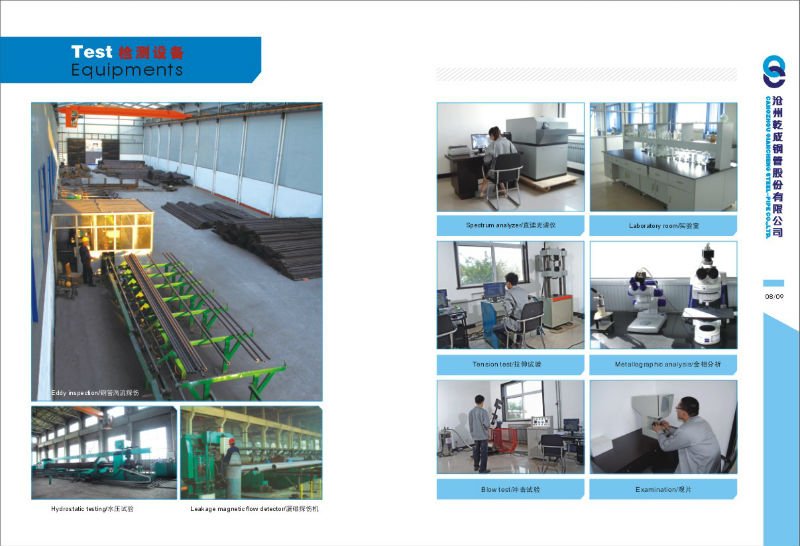

8-9

10-11

6-7

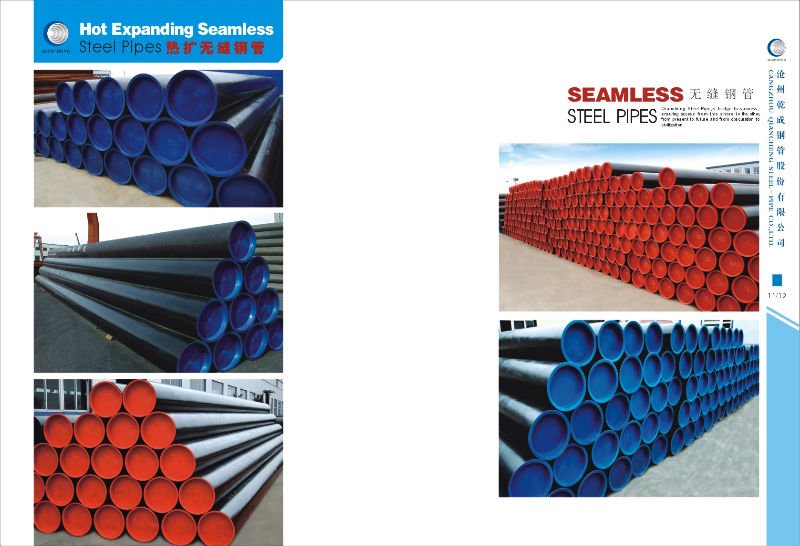

12--13

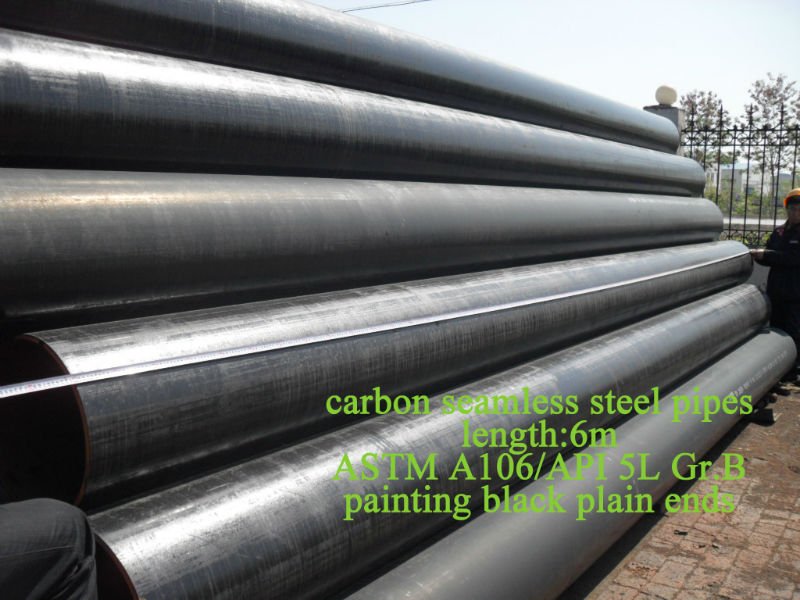

6m

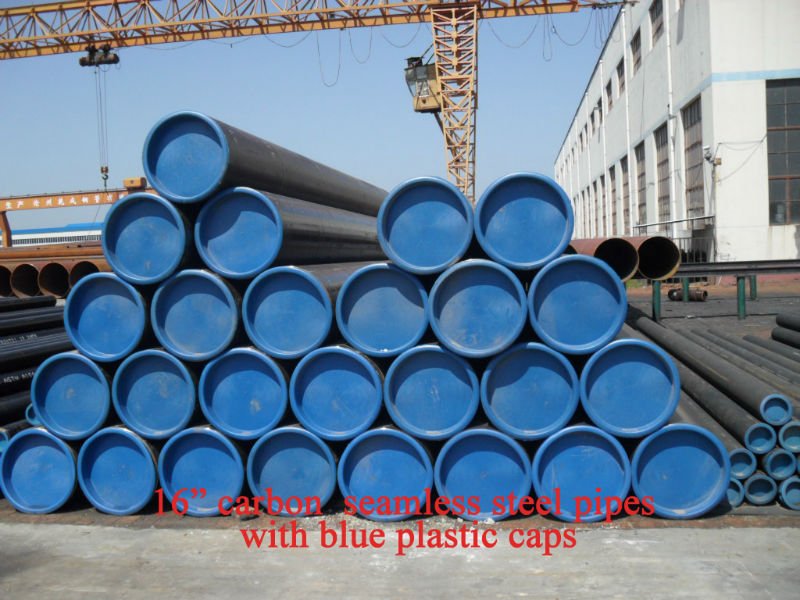

16 inch seamless steel pipes

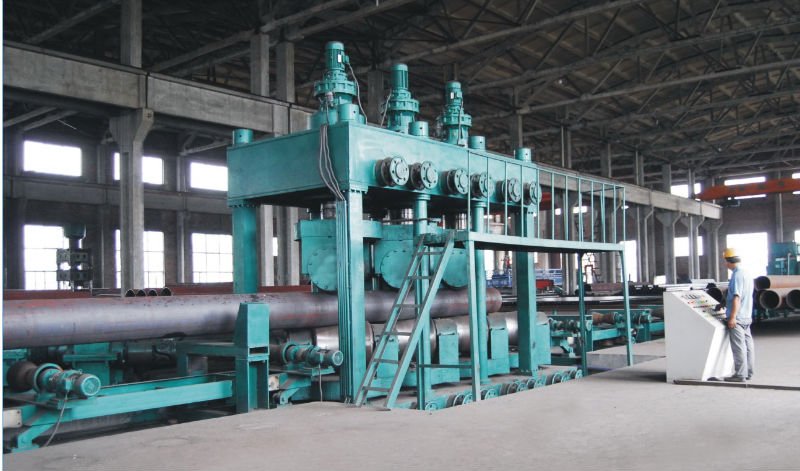

Straightener

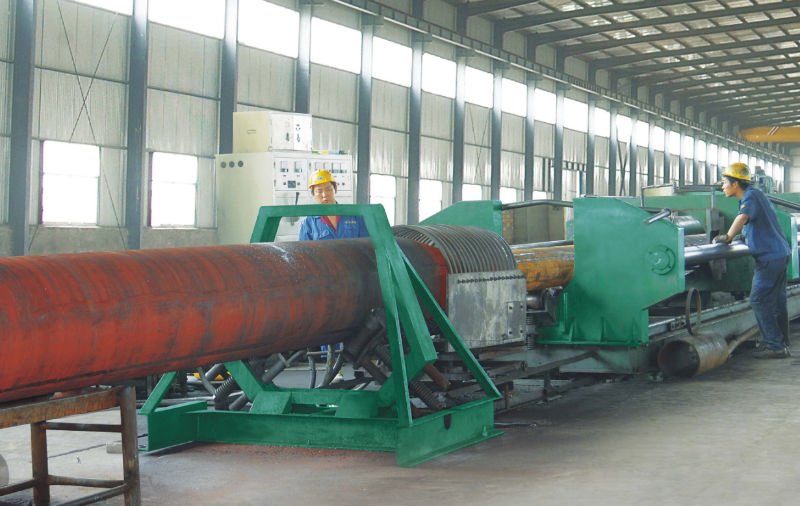

Expanding machine

SAM_0630

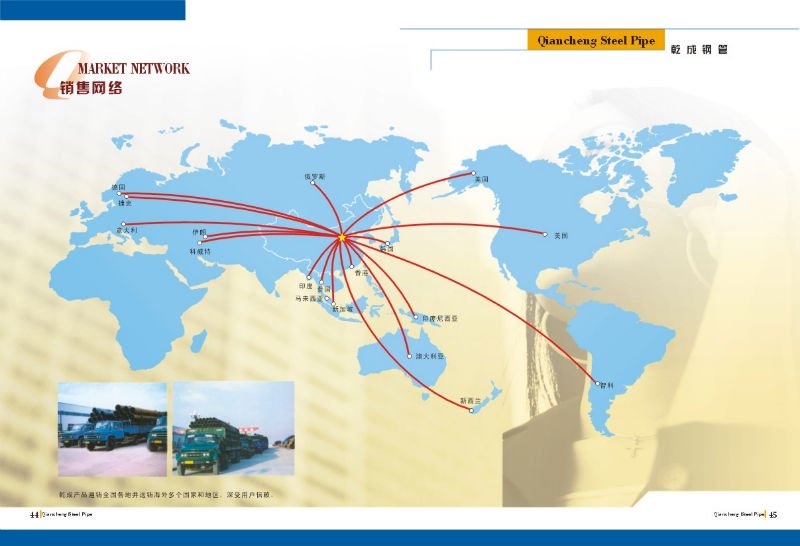

44-45
