One of the Top 500 enterprises in China foreign trade
QCCO was approved as a member of “China Association for Contracting Projects Abroad “and granted a membership certificate on Sep 28,2005; “Credibility Rating AAA certificate in Foreign Trade” was granted to QCCO by China Shippers’ Association

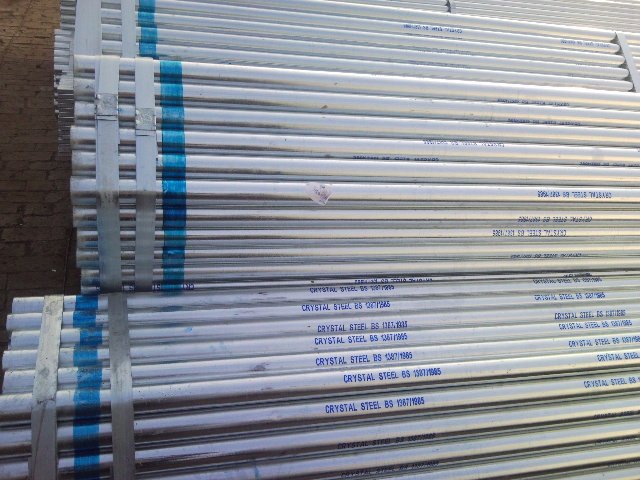

1.2 inch galvanized steel pipe,1.5 inch galvanized steel pipe
Std:ASTM,GB,EN,JIS
Grade:Q215,Q235
Surface:Galvanized
Cet.:ISO9001
| Product Name | threaded Galvanized steel pipe 1 2 inch 15inch | |||
| Size | OD | 20~406mm(1/2inch~16inch) in theory | ||
| Thickness | 1.2~15.7mm | |||
| Length | Any Length Below 16 Meter | |||
| Standard | GB/T3091-2008 ASTM A53 BS1387 BS EN39 ASTM A500 BS 4568 BS EN31 | |||
| Material | Chinese Grade | Q215 Q235 According to GB/T700;Q345 According to GB/T1591 | ||
| Foreign Grade | ASTM | Grade B,Grade C,Grade D,Grade 50 | ||
| EN | S185,S235JR,S235JO,E335,S355JR,S355J2 | |||
| JIS | SS330,SS400,SPFC590 | |||
| Usage | Used For Water, Gas, Stream, Combustible Fluids And Other Liquid Delivery | |||
| Ends | Plain, Beveled, Thread With Couplings Or Sockets; Plastic Caps And Steel Rings Can Be Provided If Possible | |||
| Surface | Bared, Galvanized, Oiled, Color Paint, 3PE; Or Other Anti-corrosive Treatment | |||
| Inspection |
With Chemical Composition and Mechanical Properties Analysis; Dimensional and Visual Inspection, Also With Nondestructive Inspection |
|||
| Technique | Hot Rolled Or Cold Rolled ERW | |||
1.2 inch galvanized steel pipe,1.5 inch galvanized steel pipe
|
chemical composition-Q235: |
|
Q235 made by grade A/B/C/D(GB700-88) |
|
Q235A C0.14~0.22% Mn0.30~0.65 Si≤0.30 S≤0.050 P≤0.045 |
|
Q235B C0.12~0.20% Mn0.30~0.670 Si≤0.30 S≤0.045 P≤0.045 |
|
Q235C ≤0.18% Mn0.35~0.80 Si≤0.30 S≤0.040 P≤0.040 |
|
Q235D≤0.17% Mn0.35~0.80 Si≤0.35 S≤0.040 P≤0.035 |
|
mechanical behavior-Q235: |
|
tensile strength:σ/MPa 375-500 |
|
tensil strengtn(δ5/%) |
|
>26(a<16mm),>25(a>16-40mm) |
|
>24(a>40-60mm),>23(a>60-100mm) |
|
>22(a>100-150mm),>21(a>150mm) |
|
a=wt or diameter |
1.2 inch galvanized pipe.threaded galvanized pipe 1 2 inch
